Linear Motion (LM) Shaft Market Size, Share, and Industry Trends Forecast 2026-2036

Linear Motion (LM) Shaft Market Insights

Aftermarket refurbishment and precision regrinding services is reconfiguring margin pools away from first-sale hardware across the linear motion shaft supply base. THK CO., LTD. leverages its captive network of technical service centers in Japan and Europe to capture recurring revenue from worn shaft recovery. SKF anchors its position through integrated condition-monitoring diagnostics that extend shaft replacement cycles while locking in service contracts. Bosch Rexroth competes by bundling shaft refurbishment into its broader linear actuator lifecycle agreements.

Linear motion shafts are hardened steel or stainless steel cylindrical rods, typically surface-finished to 0.4 μm Ra or better, that guide rolling-element bearings or plain bearings along a precise axial path in machinery. Cold-drawn alloy steel grades predominate where load capacity matters, while 440C stainless serves corrosive cleanroom environments in semiconductor tools. Round shafts occupy the largest volume position across automation equipment and packaging machinery installations where interchangeability drives procurement economics. Customized shafts generate disproportionate margin contribution because semiconductor OEMs specify exotic coatings and tight geometric tolerances that standard catalogs cannot satisfy. Dialess grinding technology leads process adoption for sub-micron straightness requirements, though heat treatment remains the non-negotiable backbone for achieving 58-64 HRC surface hardness.

Japan's METI enforces JIS B 1191 dimensional and tolerance standards that effectively gate foreign shaft suppliers from precision automation OEM qualification lists. The EU Machinery Directive, transposed through national safety agencies in Germany and Italy, mandates risk-assessed shaft-guarding integration that shapes machine builder design priorities. China's SAMR administers GB/T 17587 rolling ball screw and shaft standards that domestic producers must meet for state-supported automation tenders. Stakeholders must monitor how diverging regional certification regimes fragment the addressable market for unified product platforms.

Market Dynamics

Precision shaft procurement is bifurcating between standardized commodity supply and captive fabrication for sub-micron semiconductor tools, with surface-hardening certification emerging as the decisive gating mechanism for supplier qualification.

Growth Catalysts

• Finer process node migration:Semiconductor OEMs in Japan and South Korea are qualifying new shaft suppliers capable of 0.2 μm Ra finishes and sub-5 μm straightness over meter lengths.
• ISO 3409 surface-hardening mandates:The updated standard is forcing automation builders to source from certified heat-treatment houses, consolidating procurement toward qualified tier-one shaft mills.
• Yangtze River Delta cluster expansion:Chinese machine builders are localizing shaft sourcing to reduce lead times for robotics and packaging equipment lines.

Market Restraints

• Alloy steel input volatility:Cold-drawn 52100 and 440C stainless rod pricing fluctuates with nickel and chromium spot markets, compressing margin predictability for shaft manufacturers.
• Japanese supplier concentration:JIS B 1191 certification requirements effectively limit precision automation OEM qualification lists to domestic Japanese mills and their licensed partners.
• Ceramic bearing substitution:Silicon nitride rolling elements in some linear guides reduce shaft hardness requirements, threatening premium hardened shaft volumes in select packaging applications.

Strategic Opportunities

• India automation underpenetration:The PLI scheme for manufacturing equipment is creating first-mover openings for shaft suppliers establishing local grinding and heat-treatment capacity.
• Condition-monitoring integration:Vibration-sensor-equipped shafts enable predictive maintenance contracts, shifting revenue from hardware sales to recurring diagnostics subscriptions.
• EU Green Deal machinery retrofit:Energy-efficiency mandates are accelerating replacement cycles in German and Italian packaging lines, expanding refurbishment service addressable market.

Industry Challenges

• Dialess grinding technician scarcity:Sub-micron straightness requirements demand operators trained on specialized equipment, with qualified personnel concentrated in Japan and Germany.
• Multi-standard certification burden:Suppliers serving Japanese, European, and Chinese OEMs simultaneously must maintain parallel JIS, ISO, and GB/T qualification audits.
• Legacy equipment integration friction:New precision shafts with integrated sensor ports require retrofit adapters for older linear bearing housings, complicating upgrade sales.

Linear Motion (LM) Shaft Market Trends and Innovations

Surface engineering and diagnostic integration are redefining shaft value propositions, with differentiation migrating from dimensional precision toward lifecycle performance guarantees and embedded intelligence.

Plasma-enhanced chemical vapor deposition coatings are migrating from laboratory trials to production semiconductor tools. Applied to 440C stainless substrates, these diamond-like carbon films reduce friction coefficients below 0.1 while maintaining vacuum compatibility. Equipment builders at 3nm process nodes are specifying coated shafts for wafer-handling robots, compressing unscheduled maintenance intervals from quarterly to semi-annual cycles.

Japan's METI has tightened JIS B 1191 tolerance bands for precision shafts used in medical device manufacturing. The revised standard narrows permissible straightness deviation by 40 percent and mandates documented heat-treatment traceability. German and Swiss automation OEMs serving Asian medical markets are now dual-certifying shafts to both JIS and ISO 3409, adding six to eight weeks to qualification timelines.

Machine builders are unbundling shaft procurement from linear actuator assembly, sourcing shafts directly from specialized grinders while purchasing bearing blocks separately. This pattern fragments traditional bundled supplier relationships and shifts specification authority from actuator OEMs to end-user engineering teams. The behavior is most visible in China's Yangtze River Delta, where large automation integrators maintain approved vendor lists for shaft and bearing procurement independently.

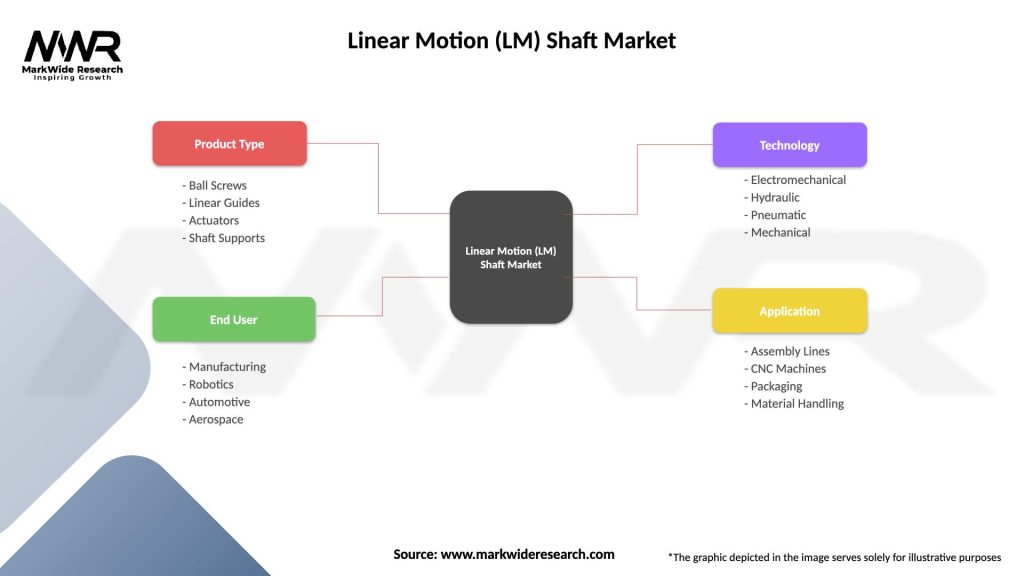

Linear Motion (LM) Shaft Market Segmentation

Linear motion shaft procurement patterns diverge sharply across product geometries, surface engineering methods, and end-use precision requirements. Shaft suppliers must align certification portfolios with the specific tolerance bands and regulatory frameworks governing each segment cluster.

Product Type:

Volume concentration and margin capture split across standardized geometries versus application-specific configurations.

• Round Shaft:Cold-drawn alloy steel cylinders with 0.4 μm Ra surface finishes dominate interchangeability-driven procurement in general automation. Chinese machine builders in the Yangtze River Delta source these in bulk for robotics and packaging lines where catalog standardization reduces spare parts complexity.
• Customized Shaft:Semiconductor OEMs specify exotic coatings and sub-5 μm straightness tolerances over meter lengths that standard catalogs cannot satisfy. Japanese and South Korean fab equipment builders pay premium multiples for shafts with documented heat-treatment traceability under JIS B 1191.
• D-Shape Shaft:Flat-milled profiles prevent rotation in linear bearing housings for conveyor systems.
• Keyed Shaft:Longitudinal keyways transmit torque in power transmission integrations.
• Threaded Shaft:Precision-rolled threads enable actuator rod end attachments.

Round shaft holds installed capacity. Customized shaft is rotating up the share rankings.

Technology:

Process selection determines which supplier base can access qualification lists for precision automation OEMs.

• Dialess Grinding:Sub-micron straightness achievement without center holes demands operators trained on specialized equipment concentrated in Japan and Germany. Semiconductor manufacturing equipment builders specify this process for 3nm process node wafer-handling robots.
• Heat Treatment:Surface hardening to 58-64 HRC remains the non-negotiable backbone for load-bearing capacity. ISO 3409 certification requirements are consolidating procurement toward qualified tier-one shaft mills with captive heat-treatment houses.
• Electroplating:Chromium and nickel deposits enhance corrosion resistance for cleanroom environments.
• Cold Drawing:Initial dimensional forming of 52100 alloy rod for subsequent precision grinding.
• Polishing:Final surface refinement to specified Ra values before coating application.

Heat treatment commands qualification authority. Dialess grinding is climbing the fastest.

Application:

End-use precision requirements stratify shaft sourcing between commodity supply and captive fabrication.

• Semiconductor Manufacturing:440C stainless substrates with diamond-like carbon coatings reduce friction coefficients below 0.1 while maintaining vacuum compatibility. Equipment builders specify these for wafer-handling robots at advanced process nodes.
• Automation Equipment:Round shafts in cold-drawn alloy steel serve robotics and packaging machinery where interchangeability drives procurement economics across China's manufacturing clusters.
• Packaging Machinery:Moderate-precision shafts face ceramic bearing substitution threats in select applications.
• Textile Equipment:Dust-resistant sealing configurations address fiber contamination environments.
• Printing Machines:Vibration-dampened shaft mounts stabilize high-speed paper transport.

Semiconductor manufacturing anchors premium pricing. Automation equipment is expanding most quickly.

End User Industry:

Specification authority and procurement volume distribute differently across build-versus-buy decision structures.

• Machine Builders:Large automation integrators in China's Yangtze River Delta maintain approved vendor lists for shaft and bearing procurement independently, unbundling sourcing from linear actuator OEMs. This fragments traditional bundled supplier relationships.
• Original Equipment Manufacturers:Semiconductor tool builders impose JIS B 1191 and ISO 3409 dual-certification requirements that extend qualification timelines.
• Maintenance Workshops:Aftermarket refurbishment demand creates recurring revenue from worn shaft recovery services.
• R&D Facilities:Prototype quantities with exotic material specifications.
• Precision Tool Providers:Subcontract grinding services for specialized geometries.

Machine builders concentrate volume authority. Maintenance workshops are gaining share fastest.

Regional Outlook

Shaft fabrication capacity clusters in Japan and Germany, where dialess grinding expertise and JIS/ISO certification infrastructure create qualification barriers for new entrants. Demand dispersion follows semiconductor fab investments and automation cluster formation across East Asia and Western Europe.

Japan

Semiconductor equipment builders in Tokyo and Osaka prefectures drive sub-micron precision shaft procurement for 3nm process node tools. METI enforces JIS B 1191 standards that gate foreign suppliers from OEM qualification lists. The Chubu region around Nagoya hosts captive heat-treatment houses serving medical device manufacturers facing tightened tolerance bands.

Germany

Packaging machinery OEMs in Bavaria and Baden-Württemberg source shafts under EU Machinery Directive risk-assessment requirements for guarding integration. The EU Green Deal accelerates replacement cycles in energy-efficiency retrofits. Stuttgart's automation cluster unbundles shaft procurement from linear actuator assembly, shifting specification authority to end-user engineering teams.

China

Machine builders in the Yangtze River Delta localize shaft sourcing to reduce lead times for robotics lines. SAMR administers GB/T 17587 standards that domestic producers must meet for state-supported automation tenders. Suzhou and Shanghai house approved vendor lists where large integrators procure shafts and bearing blocks independently.

South Korea

Memory and logic fab expansions near Seoul and Pyeongtaek qualify new shaft suppliers capable of 0.2 μm Ra finishes. MFDS alignment with international medical device standards creates dual-certification pathways for precision components. The Gyeonggi-do automation belt concentrates demand for customized shaft configurations in display manufacturing equipment.

India

The PLI scheme for manufacturing equipment creates first-mover openings for shaft suppliers establishing local grinding capacity. Maharashtra and Gujarat automation clusters underpenetrate relative to East Asian benchmarks. Pune and Ahmedabad machine builders currently import precision shafts, exposing lead time vulnerabilities that domestic fabrication could address.

Linear Motion (LM) Shaft Market Competitive Landscape

Integrated linear motion specialists and precision component fabricators split the market between bundled actuator systems and unbundled shaft supply. Japanese and European incumbents anchor premium tiers through captive certification networks, while Chinese and Taiwanese suppliers compete on lead time compression for standard geometries. Two archetypes dominate: vertically integrated linear guide OEMs controlling specification authority, and independent shaft grinders serving unbundled procurement patterns. Competitive moves concentrate on M&A for heat-treatment capacity and strategic partnerships for dialess grinding technology access.

Among Japanese precision specialists, THK CO., LTD. and NSK Ltd exemplify the integrated archetype with technical service center networks capturing recurring refurbishment revenue. Bosch Rexroth represents the European bundled-system approach, while SKF anchors condition-monitoring integration that extends replacement cycles through predictive diagnostics contracts. These three occupy positions where hardware sales shift toward lifecycle performance guarantees and embedded intelligence subscriptions.

Leading Market Players
THK CO., LTD.
SKF
Hepco Motion
Bosch Rexroth
Hiwin Corporation
NSK Ltd
MISUMI Corporation
Thomson Industries, Inc.
OZAK Seiko Co., Ltd
Others

Pricing and Supply Chain Analysis

Japanese dialess grinding capacity concentration in Nagoya and Tokyo prefectures funnels margin pools toward certified heat-treatment houses with JIS B 1191 accreditation, leaving standard-grade shaft fabricators in China and Taiwan competing on nickel-chromium input cost management rather than specification authority.

Pricing Analysis

ISO 3409 dictates the pricing tier structure across the Linear Motion Shaft Market, separating JIS-certified precision shafts for semiconductor tools from uncertified commodity supply for packaging machinery. Three-tier pricing structure across premium, standard, and economy levels reflects certification grade and heat-treatment traceability documentation. Cost compression in standard round shafts is intensifying because Chinese machine builders unbundle procurement from actuator OEMs and force competitive bidding across Yangtze River Delta vendor lists. Automation equipment integrators exhibit highest price sensitivity, while Japanese fab equipment builders pay minimal attention to unit cost when sub-5 μm straightness tolerances are required.

Supply Chain Analysis

Contract grinding capacity concentrates with THK CO., LTD., NSK Ltd, and specialized German dialess houses in Stuttgart and Munich. Raw material flows draw from cold-drawn 52100 alloy rod mills in Japan and 440C stainless suppliers in South Korea, with coating deposition feeding from plasma-enhanced CVD specialists in Germany. Single-source vulnerability runs through JIS-certified heat-treatment houses that gate access to precision automation OEM qualification lists. Distribution runs through technical service centers capturing refurbishment revenue, direct mill relationships with large integrators, and distributor networks serving maintenance workshops.

Analyst Recommendations

The Linear Motion Shaft Market sits in early-cycle expansion as semiconductor process node migration below 5nm accelerates qualification demand for sub-micron precision shafts that standard catalogs cannot satisfy.

For Market Incumbents: Pre-empt ceramic bearing substitution threats in packaging applications by embedding vibration sensors that enable predictive maintenance contracts, locking in service revenue even where hardness requirements soften. Deepen backward integration into captive heat-treatment capacity to defend JIS B 1191 certification barriers against emerging Chinese competitors. Control specification authority by expanding technical service center networks in South Korea and India before local grinding capacity matures. For New Entrants and Emerging Players: Pursue Maharashtra and Gujarat automation clusters in India where PLI scheme incentives and import-dependent machine builders create first-mover openings for localized dialess grinding investment. Target semiconductor refurbishment services as the most penetrable segment, where worn shaft recovery generates recurring revenue without requiring immediate JIS certification. Establish go-to-market partnerships with European condition-monitoring specialists to bundle diagnostic subscriptions with hardware supply. For Investors and Strategic Acquirers: Capital is best deployed toward mid-cap shaft grinders with dialess equipment and existing ISO 3409 certification, positioned for acquisition by integrated linear guide OEMs seeking to unbundle competitor relationships. Long-term viability across the analysis window favors suppliers with hybrid capability across standard round shafts and exotic-coated custom configurations. Watch for inflection in India's domestic grinding capacity buildout as the signal that price competition will intensify in standard-grade supply.

Strategic Initiative	Industry Significance
Certification Investment	JIS B 1191 and ISO 3409 dual-accreditation gates access to Japanese and European OEM qualification lists.
Heat-Treatment Capacity Expansion	Captive hardening to 58-64 HRC reduces dependency on qualified tier-one mills and compresses lead times.
Condition-Monitoring Integration	Vibration-sensor-equipped shafts shift revenue from transactional hardware sales to recurring diagnostics subscriptions.
Regional Grinding Footprint	Local dialess capacity in India and Southeast Asia addresses lead time vulnerabilities in underpenetrated automation clusters.
Refurbishment Service Network	Worn shaft recovery captures margin pools migrating away from first-sale hardware across the installed base.

Research Methodology

The analysis maps round shaft, customized shaft, and specialty profile configurations, each validated through primary interviews with automation equipment procurement managers, semiconductor tool OEM sourcing directors, linear guide aftermarket service heads, and precision grinding plant engineers. Secondary validation drew from JIS B 1191 certification registries, EU Machinery Directive transposition documents, SAMR GB/T 17587 standards filings, and customs trade data on 52100 alloy and 440C stainless rod movements. Bottom-up shaft volume estimates from end-use equipment production data were triangulated against top-down supplier revenue analysis.

Assumptions held fixed include JIS B 1191 tolerance band enforcement, ISO 3409 certification requirements, and semiconductor process node migration timelines; variables tested include nickel-chromium price volatility, India PLI scheme uptake rates, and ceramic bearing penetration in packaging applications. Segmentation dimensions modeled span product geometry, surface engineering technology, end-use precision requirements, and specification authority structure. CAGRs were derived from equipment investment cycles and replacement rate analysis, with semiconductor capital expenditure patterns and automation cluster formation rates as key inputs.

Macroeconomic conditions sit as an overlay; deviation in Chinese manufacturing investment, Japanese yen-denominated equipment export competitiveness, or EU Green Deal retrofit funding would shift the trajectory. Forecasts reflect these documented assumptions and risk factors including alloy input volatility, certification audit backlogs, and dialess grinding technician scarcity. Quarterly review of semiconductor fab equipment order books, Indian PLI scheme beneficiary announcements, and JIS certification registry updates is advised to detect inflection.
